1. No Pallet Egg Laying Molding Design to Cut Long-term Production Cost
As a typical no-pallet egg-laying block machine, this model completely abandons the pallet circulation system required by traditional block equipment. Buyers do not need to spend extra funds to purchase PVC, GMT or bamboo pallets in the early stage of factory construction. There is no continuous loss, breakage and regular replacement of pallets during long-term mass production, which cuts huge recurring pallet maintenance and renewal costs year by year. It greatly reduces the overall production cost for family factories and small-scale brick investors with limited capital.

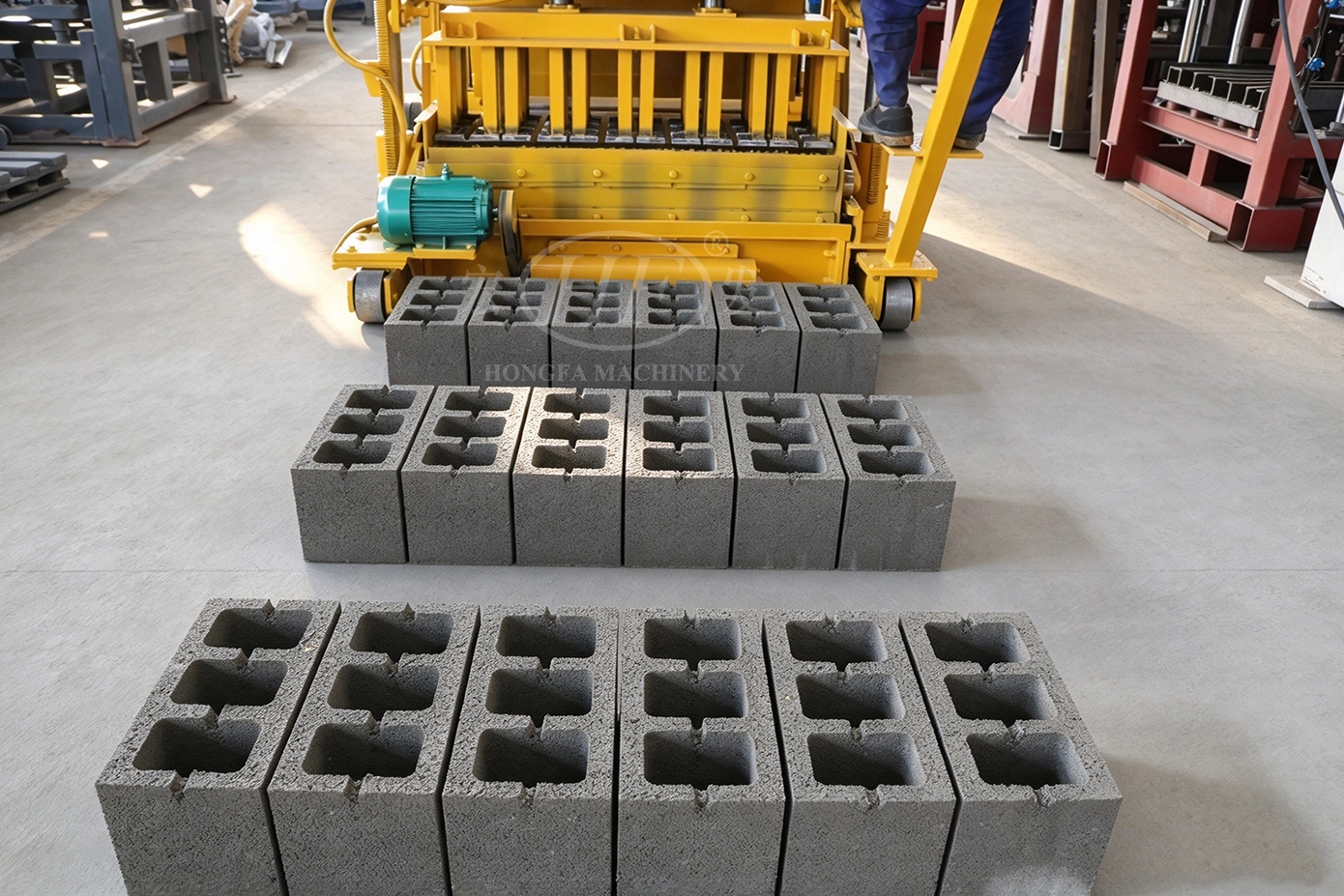

Benefiting from the egg-laying forming principle that directly discharges blocks on the ground, the machine removes all pallet-related procedures including pallet feeding, conveying and stacking. Customers no longer need to purchase supporting pallet elevator and conveyor, which lowers the one-time equipment procurement budget. The production site layout becomes more compact, and the utilization rate of hardened ground space is greatly improved.
The walking egg-laying structure enables the machine to move freely on solid ground and lay finished blocks at different positions. It only requires 3000-5000 square meters of flat hardened ground to complete the whole production area, without laying complex pallet storage tracks. The equipment is highly adaptable to small family industrial plants with limited factory area.
2. Upgraded Egg-laying Structure for Higher Output & Reliable Forming Quality

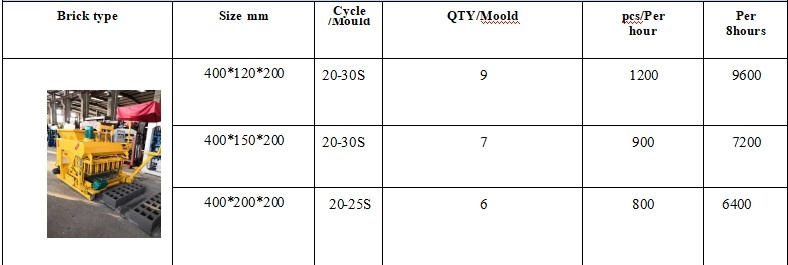

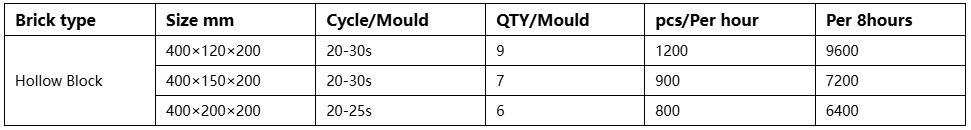

Compared with QMJ4-30 model, QMJ6-30 features larger mould specification and higher hourly output. It can produce 9 pieces of 400120200mm blocks per cycle, with an 8-hour shift output up to 9600 pieces, significantly boosting production capacity while retaining the core no-pallet egg-laying advantage. The molding cycle is controlled within 20-30 seconds to balance efficiency and block compactness.
It adopts integrated vibration box instead of single vibration motor direct drive, making vibration evenly distributed inside the mould without dead zones. Equipped with Taiwan Calyca brand hydraulic components, the hydraulic pressure output is stable. Combined with synchronous vibration, concrete materials are fully compacted, so finished solid and hollow blocks have high density and smooth surface without honeycomb defects.
3. Heavy-duty Welded Frame Ensures Stable Long-run Operation

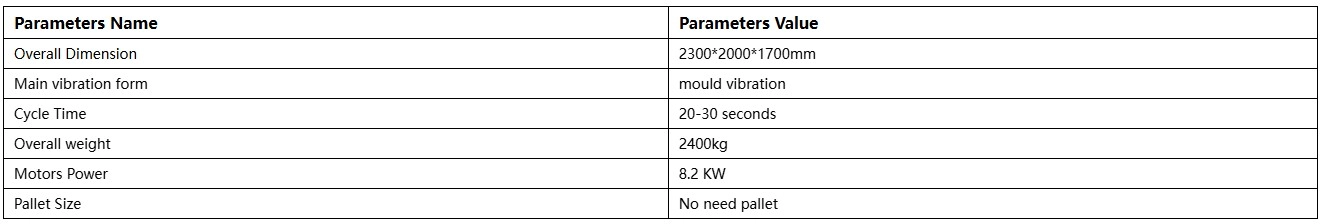

The whole machine frame is integrally welded by high-quality 12*12cm square steel from Laigang and Jigang, with strong torsion resistance, impact resistance and anti-fatigue performance. The total machine weight reaches 2400kg, which effectively avoids shaking and shifting during mobile egg-laying production, and keeps molding dimension precision stable for years of continuous running.
Many lightweight brick machines tend to deform after long-time vibration, leading to uneven brick size and increased waste products. This thickened heavy-duty frame is engineered to withstand continuous high-frequency vibration load day after day. The total matching motor power is 8.2KW, with reasonable power distribution and low motor burnout failure rate. It can sustain non-stop shift production for small brick plants, minimizing unexpected downtime and keeping your production schedule on track.
4. Wide Raw Material & Product Compatibility to Expand Business Orders
The machine supports mixed raw materials including crushed stone, river sand, cement, fly ash, cinder, slag and gangue. Factories can make full use of local industrial solid waste residues and construction waste aggregates to replace part of cement and natural aggregate. This not only complies with global circular economy and waste recycling policies, but also greatly lowers raw material purchase expense and long-distance material transportation cost. You can source waste materials locally, reduce reliance on expensive virgin stone and sand, and improve your profit margin for every finished block.
It can produce solid and hollow blocks with height ranging from 190mm to 250mm. By replacing different manganese steel moulds, customers can produce various mainstream size blocks to meet diversified construction market demands. Whether for residential building, retaining wall or infrastructure projects, one machine can deliver multiple brick products. You can quickly adjust product types according to market demand changes, seize more local construction orders and expand your business revenue sources flexibly.
5. Complete Auxiliary Configuration & Trustworthy Global After-sales Service
The standard production set is matched with JZC350 concrete mixer, and wheel loader is optional for automatic raw material feeding. The complete line adopts LCL nude shipment, which saves ocean freight for small batch purchasers. Only 4-5 workers are needed to finish the whole production process, suitable for family industrial operation mode.
One set of hollow block manganese steel mould is delivered free with the machine. The manufacturer provides one-year warranty after full installation and commissioning at the buyer’s factory. Professional online remote technical support is provided all year round to solve equipment related problems for overseas customers.
